SAKYA CARBON 700C Disc Brake CX Fork Gravel Carbon Fork
Share to

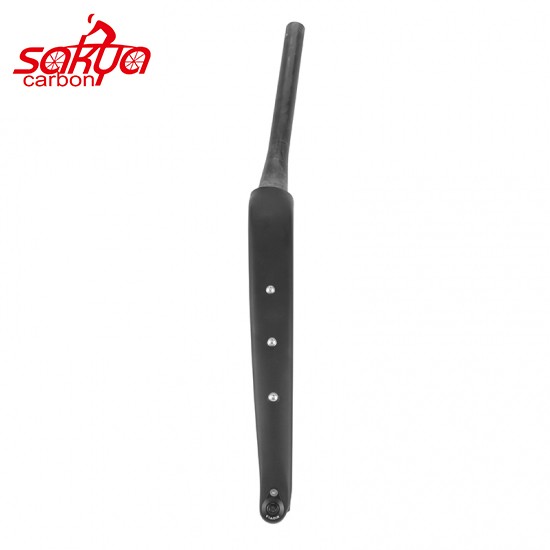

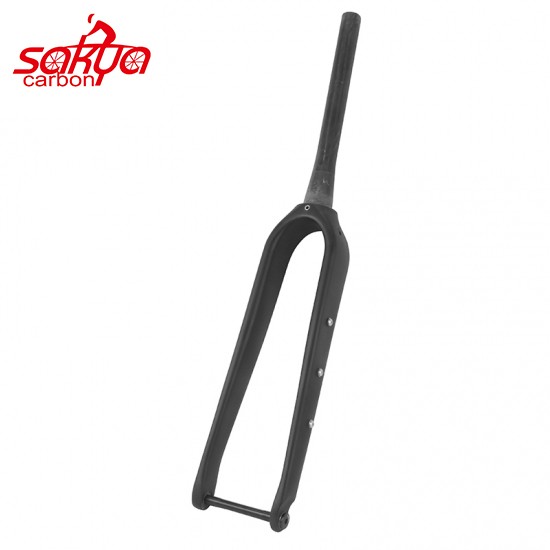

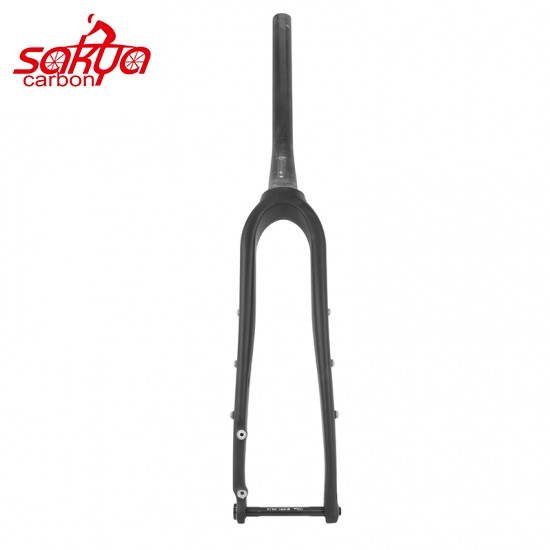

Sakya carbon 700C Disc Brake Gravel Carbon Fork

More and more cyclists are venturing off the beaten path on drop-bar bikes for both adventure and racing. So we designed this carbon fork FK-G071-D for both gravel and cyclocross bike. If you are looking for high quality, super light and stiff gravel fork to upgrade your current bike for the next adventure, then your search is over. The following product features will tell you the reason.


Carbon Gravel Fork FK-G071-D Features

- Light weight gravel carbon fork, with weight around 465g (not including thru-axle) .

- There’s a fender mount on the fork to keep your bike much cleaner and reduces drivetrain wear caused by road filth.

- 12mm thru-axle provides superior braking and steering performance.

- Internal cable routing for the front brake makes the front fork look tidier and reduces the risk of cable snag.

- Disc brake rotor140mm and 160mm are compatible (flat mount).

- Three rack mounting holes on each fork leg (6 in total), max load on fork(each side)=3kg.

  We recommend distributing weight evenly between the two sides so as not to affect handling.

- Don't need crown race, just put 45 degree bearing directly (52*7*45°)

Carbon Gravel Fork FK-G071-D Features

700C Gravel Carbon Fork FK-G071-D Specifications

Product 700C disc brake CX fork gravel carbon fork
Material High modulus Toray T700 carbon fiber
Bike type Gravel bike/ byclocross bike
Brake mount type Flat mount
Suitable brake  140/160mm disc brake rotor
Weight 495+-10g (without thru-axle)
Thru-axle spec 12*100mm,thread pitch 1.5mm, length 160mm, 36+-5g
Max tire clearance 700*53C, 650B*2.1''
Upper tube diameter 28.6mm(1 1/8'')
Lower pipe diameter 39.8mm (1 1.2'')
Steerer tube length 300mm
Offset/Rake 50mm
Axle to crown 397mm
Torque-steer tube 6nm
Torque-axle 10nm
Test standard ISO4210
Warranty 2 years
Package included Fork+thru-axle

Two Fork Versions Optional

The default carbon gravel fork is equipped with 3 rivets on each side of the fork leg. Considering that some riders do not intend to put small luggage or bottles on the fork legs (which would interfere with handling), this gravel fork has another option, namely there are no rivet holes on each side. If you prefer a fork without riveted holes, please let us know when placing your order.

FK-G071-D Gravel Bike Fork Geometry

Gravel Bike Fork Geometry

Gravel Bike Carbon Fork FK-G071-D Video
