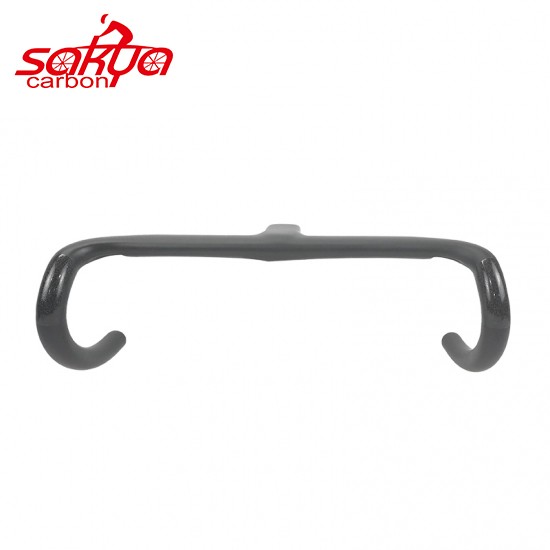

Super Light Carbon Road Integrated Aero Handlebar HBR13
Handlebars play an important role in your cycling. Sure, they're your main steering method, but they also support a lot of your weight. There's a lot of force on your handlebars when you turn, land and jump. On top of that, the shape of the handlebars affects how you handle the bike and how comfortable your riding position is. When choosing the best set of handlebar, it is important not only to choose one that will endure the kind of riding you do, but also to find one that will be comfortable to use. If you are looking for a better control, more comfortable ride, super light and stiff handlebar, your search is over. Our carbon road integrated aero handlebar HBR13 is designed to reduce wind resistance and improve aerodynamics. More streamlined than traditional handlebar designs. The goal of using a road integrated aero handlebar is to increase speed and efficiency while riding in a race or other high-performance cycling. Stiff, light and designed for speed, this handlebar will help you save valuable seconds during next race.
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Super Light Aero Road Handlebar HBR13 Features
- Combine stiffness, durability, excellent handling and low weight.
- Super light design, size 400x110mm only weighs 328g.
- Two usages : full hidden internal and semi-internal cabling (related spacer included).
- Contents: HBR13+carbon computer mounts(Garmin/Wahoo/Bryton)+spacers+stem cover+cateye+GoPro holder+bolts.
HBR13 Integrated handlebar/stem Specifications
Product | Carbon road integrated aero handlebar HBR13 |
Material | High modulus Toray T1000 carbon fiber |
Handlebar width | 380mm/ 400mm/ 420mm (Top Center to Center) |
Stem length | 90mm/ 100mm/ 110mm/ 120mm |
Spacer | 2*5mm; 2*10mm |
Reach | 77mm |
Drop | 127mm |
Stem angle | -10 degrees |
Steerer tube diameter | 28.6mm (1 1/8'') |
Clamp torque | 6N.m |
Two wiring types | Full internal / Semi-internal |
Computer mount | Garmin/Bryton/Wahoo |
Weight |
305±10g(400*90mm) 310±10g(420*90mm) 315±10g(420*100mm) 330±10g(420*110mm) 335±10g(420*120mm) |
Brand | No LOGO (can be customized) |
Test standard | ISO4210 |
Warranty | 2 years |
Package included |
HBR13+carbon computer mounts(Garmin/Wahoo/Bryton) +spacers+stem cover+cateye+GoPro holder+bolts |
Carbon Road Handlebar HBR13 Geometry
Stem length should be measured from the bottom(the center of steerer clamp to the center of handlebar clamp ). Due to the angle of the stem, the top center hole of steerer clamp is not in the same plane as the center of handlebar clamp. If you measure from top,the size you measured will be larger than the size we marked. For example, the length shown in our geometry (measured from below) is 100mm, while it's closer to 110mm if measured from top.
Full internal Cabling Installation Process
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Semi-Internal Cabling Installation Process
-------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------

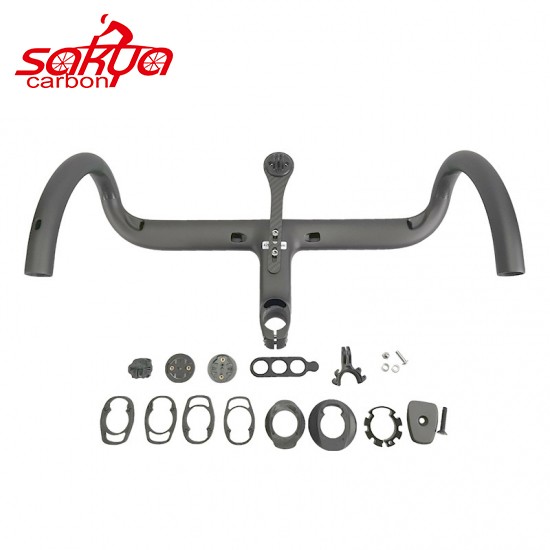

Package Included
