 Super Light Disc Brake Road Carbon Frameset With Stem

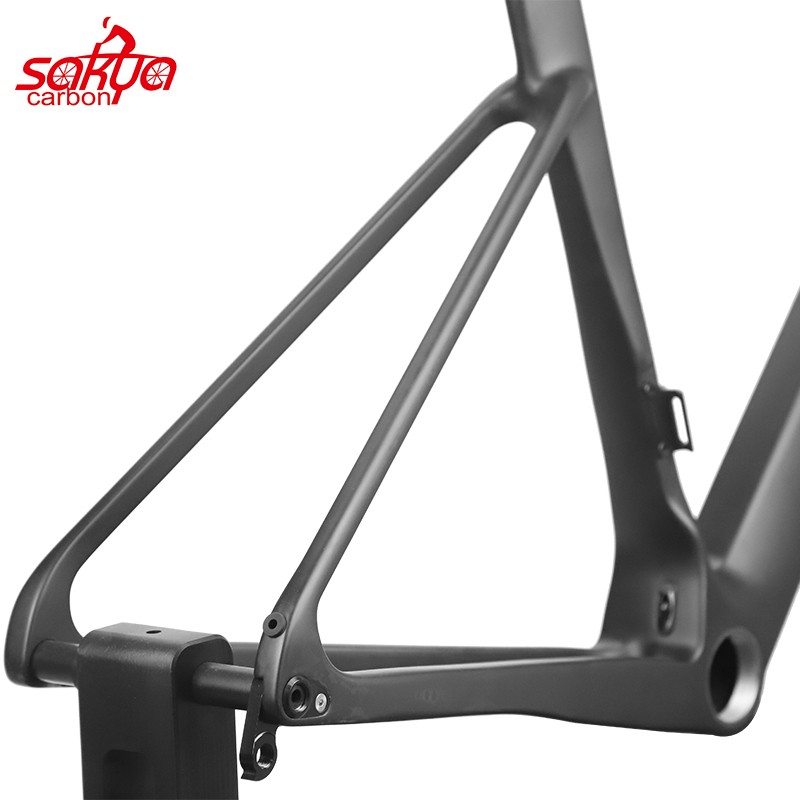

Frame  Super Light Road Disc Brake Carbon Frame
Material High modulus Toray T700+T800+T1000 carbon fiber
Size 49, 52, 54, 56, 58 (cm)
Fork LightCarbon specific carbon fork, 390g+-15g
Stem size 90/100/110/120mm
Stem angle 10 degree
Headtube Straight 1 1/2'' head tube (upper 52mm lower 52mm)
Weight(+-30g) 850g/49cm
Seatpost 20mm offset (also with 0mm offset optional), 160+-10g
Saddle rail clamp 7x7mm and 7x9mm optional
Bottom bracket Threaded T47 * P1.0 (68mm width)
Max tire clearance         700C*32C
Brake mount type Flat mount 140mm or 160mm
Dropout Front 12*100mm TA Rear 12*142mm TA
Groupset Mechanical and Di2 compatible
Frameset includes Frame +fork +seat post+clamp +headset +spacers +thru-axles+ stem
Test standard ISO4210
Warranty  2 years

Sakya carbon Super Light Road Carbon Frame LCR017S-D Geometry And Size Chart

 LCR017S-D Geometry And Size Chart

Size 490 520 540 560 580
BODY HEIGHT (Reference)  155 - 164cm 165 - 172cm 173 - 179cm 180 - 186cm 187 - 194cm
Remarks for BODY HEIGHT For reference only, may vary due to different body proportions.
SEATPOST INSERT LENGTH 150mm 170mm 190mm 210mm 230mm
REACH 385.1mm 390.8mm 390.8mm 396.4mm 402.1mm
TOP TUBE LENGTH, HORIZONTAL 525mm 540mm 550mm 565mm 580mm
STACK 505.4mm 521.2mm 541.9mm 562.7mm 582.9mm
WHEELBASE 986.6mm 988.7mm 990.8mm 998.2mm 1006.9mm
CHAINSTAY LENGTH 410mm 410mm 410mm 410mm 410mm
FRONT CENTER 586.8mm 588.9mm 590.9mm 598.3mm 607mm
BB DROP 70mm 70mm 70mm 70mm 70mm
BB HEIGHT 278mm 278mm 278mm 278mm 278mm
SEAT TUBE ANGLE 74.5° 74° 73.6° 73.3° 73°
HEAD TUBE ANGLE 71° 72° 72.5° 73° 73.3°
SEAT TUBE LENGTH 480mm 500mm 522mm 542mm 560mm
HEAD TUBE LENGTH 108mm 121mm 141mm 161mm 181mm
BIKE STANDOVER HEIGHT(700C*32C) 753.6mm 772mm 793.1mm 813mm 831.3mm
FORK RAKE/OFFSET 45mm 45mm 45mm 45mm 45mm
FORK LENGTH, FULL 368mm 368mm 368mm 368mm 368mm
TRAIL 68.1mm 63.7mm 62.6mm 59.3mm 57.4mm

Main Features Of LightCarbon LCR017S-D Road Bike Frame

LCR017S-D Main Features

SAR017S-D Disc Brake Road Carbon Frameset Cable Routing

LCR017S-D Cable Routing

A - Rear derailleur cable routing

B - Rear disc brake cable routing

C - Front Derailleur cable routing

D - Front disc brake cable routing

Technology we use in our road bike carbon frame production

real photo of 3D latex mandrel 3D latex mandrel applied on frame
real photo of 3D latex mandrel 3D latex mandrel applied on frame

Use the newest one-piece latex 3D mandrel and molding technology.

Such technology helps to optimize the orthodromic and strength of carbon fiber, and avoid wrinkle inside (wrinkle is a key factor that may cause crack) Even using the same material, the strength is improved 30%.

Cross Section of SAR017S-D Carbon Road Frame

Smoother Inner Surface of LCR017S-D Frame

Two Versions Carbon Seat Post Optional

LCR017-D Seat Post and Saddle Rail Clamp Options

The default carbon seat post that will come with SAR017S-D road frameset are with 20mm offset and 7*7mm saddle rail clamp (fit regular round shape saddle). If you prefer 0mm offset seat post and 7*9mm saddle rail clamp(fit most carbon rail saddle) , please let us know when placing orders.

T47 Bottom Bracket (Shimano 24/Sram 30 optional)

T47 Bottom Bracket

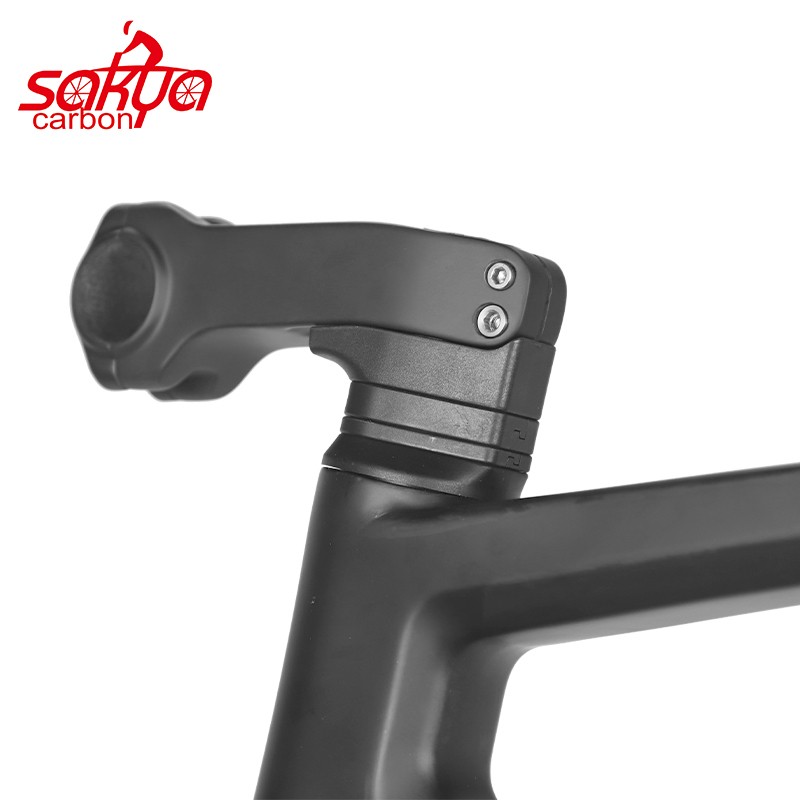

Geometry of Carbon Stem For SAR017S-D Frame

Geometry of Carbon Stem For LCR017S-D Frame

Complete Bike Built With LightCarbon SAR017S-D Carbon Road Frameset

LCR017-D complete bike
